2003-2008 FORD ESCAPE MERCURY MARINER MAZDA TRIBUTE PCM REPAIR 5L8A-12A650-AAD

This item is a REPAIR SERVICE of your defective PCM for 2003-08 Ford Escape Mercury Mariner or Mazda Tribute PCM.

This requires you to remove the PCM and send it to us for our board/component level PCM repair. This is for repair of COIL PACK FAILURE that has rendered the PCM unable to provide ground signal to Coil.

We will repair and return the engine computer within 24-48 hours of our receiving the unit and completion of verification testing.

Please send a Repair Send Form with the PCM and list the codes (P0351, P0352-6 etc). This is an indicator of the drivers that have been affected by the COIL PACK(S) that have failed. There is a Technical Service Bulletin (TSB) for Coil Pack Failure that requires the COIL PACKS replaced with OEM ONLY upgraded Coil Packs that cause PCM failure. PCM must be replaced typically. We have been specializing in PCM failure repairs on line @ ECMtoGO.com since 1997. We can repair the original which comes back with no programming required.

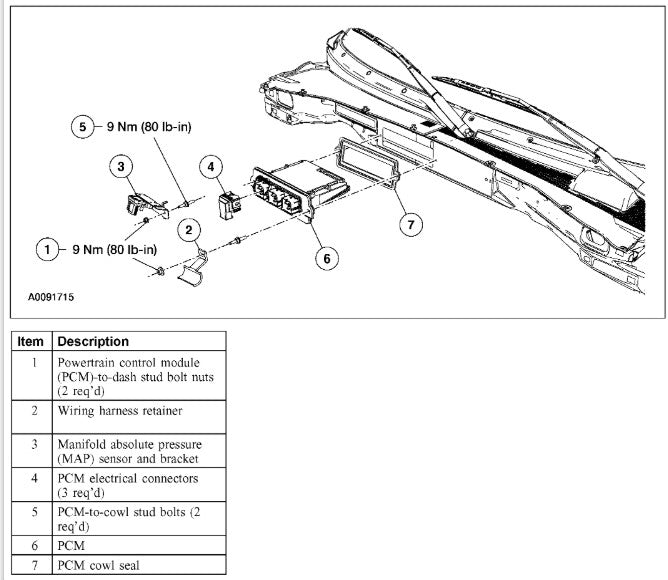

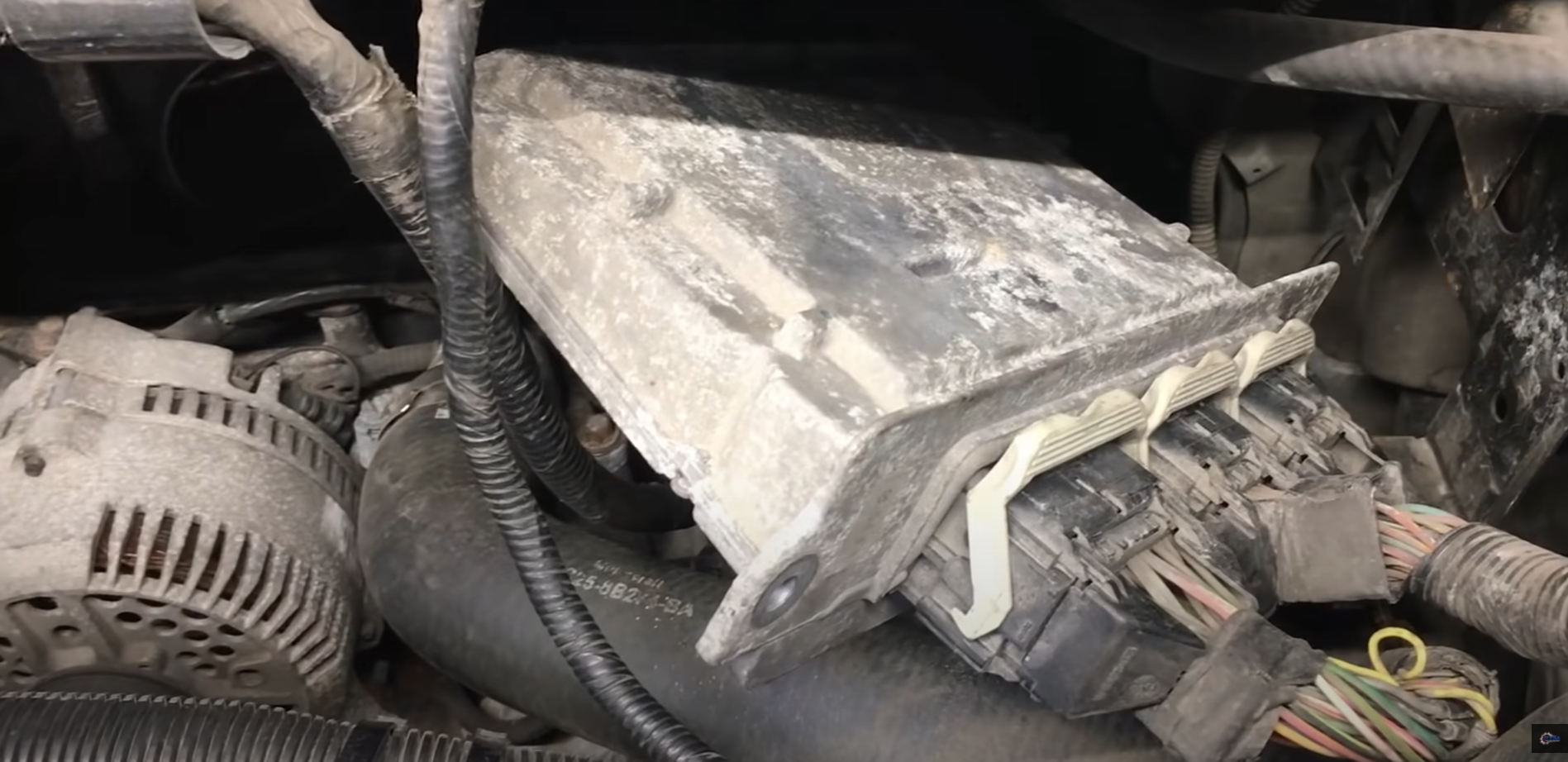

The PCM is located in the engine compartment on passengers side firewall. (see diagram or pics).

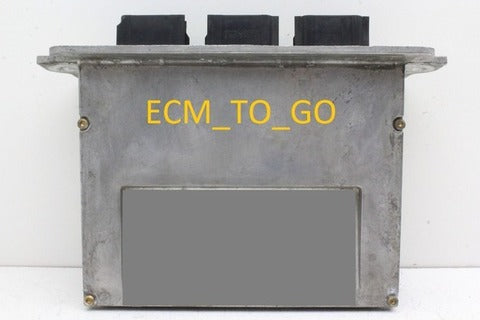

PART NUMBER OR OEM PN

5L8A-12A650-AAD
